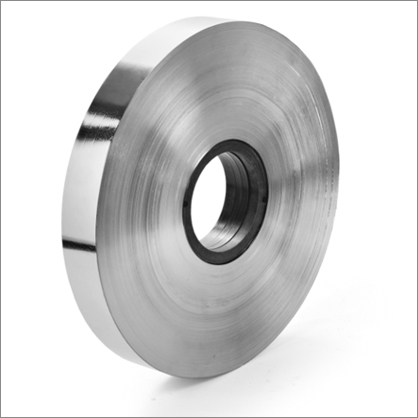

Amorphous Ribbon

Amorphous Ribbon

• Properties
• Product Code
• Characteristics

• Properties of Products

  Saturated magnetic induction intensity (T)	1.61	Saturated magnetostrictive coefficient	27*106
  Curie temperature (°C)	394	Density (g/cm3)	7.25
  Crystallization temperature (°C)	478	Resistivity (-cm)	114
  Hardness (kg/mm2)	980	Coercive force (A/m)	<3.8





• Product Code Description

  Product specification	Ribbon width(mm)	Ribbon thickness(pm)
  J1K101030262	3	26
  J1K101035262	3.5	26
  J1K101045262	4.5	26
  J1K101050262	5	26
  J1K101060262	6	26
  J1K101065262	6.5	26
  J1K101080262	8	26
  J1K101100262	10	26
  J1K101150262	15	26
  J1K101200262	20	26
  J1K101250262	25	26
  J1K101300262	30	26
  J1K101350262	35	26
  J1K101400262	40	26
  J1K101450262	45	26
  J1K101500262	50	26
  J1K101550262	55	26
  J1K101600262	60	26
  J1K101650262	65	26
  J1K101700262	70	26
  J1K101800262	80	26
  J1K1011200262	120	26
  J1K1011420262	142	26
  J1K1011700262	170	26
  J1K1012130262	213	26

• Amorphous Ribbon

  OUTLINE

  The Iron-based Amorphous alloy is composed of 80% Fe and 20% Si and B, the alloy of the metal element is rapidly solidified. An amorphous material formed by the art, having an extremely high quality, superior physical and electrical.




  TECHNICAL CHARACTERISTICS

  • High saturation magnetic induction intensity--reduce the number of winding turns, reduce the volume of the product
  • High resistivity, low coercivity--improve product efficiency.
  • Low loss(equivalent to 1/3-1/5 of silicon steel sheet)--reduce the temperature rise of the product and improve the efficiency.
  • Low excitation power--reduce the no-load current of the product, reduce the copper loss of the primary winding.
  • Variable magnetic conductivity--different heat treatment processes of iron core can be used to meet different application requirements.
  • Good temperature stability--can work at 130 degrees C for a long time

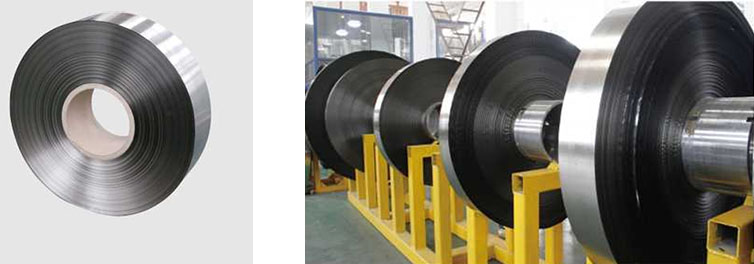

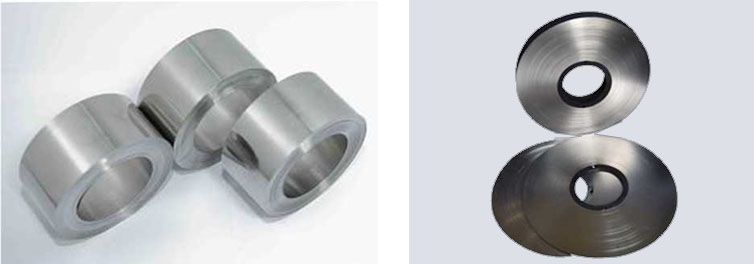

• Product display




  Product display



  Product display
