Application area
Precision mutual inductor iron core, high-frequency common-mode inductor core, leakage protection switch transformer core, ring iron core for small switching power supply transformer

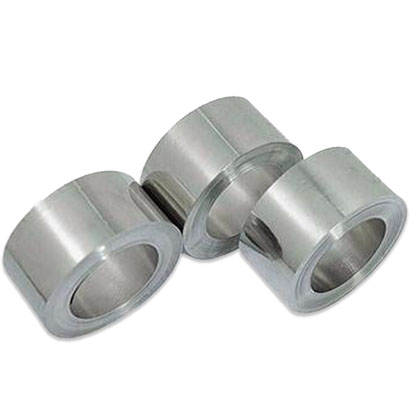

Physical properties of the iron-based amorphous alloy
|
Saturated magnetic induction intensity BS (T) |
1.25 |
Density (g/cm3) |
7.8 |
|
Curie temperature (°C) |
570 |
Crystallization temperature (°C) |
510 |
|
Hvhardness |
880 |
Saturation magnetostriction coefficient |
2*10 6 |

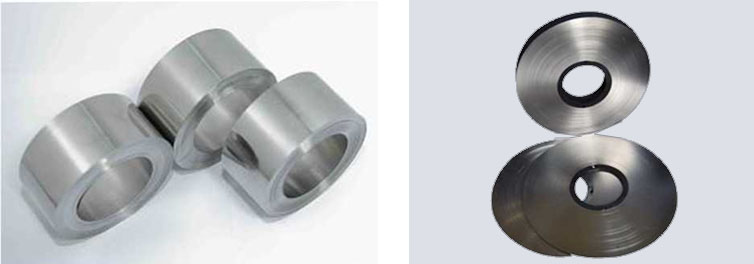

Product Specifications
|
Specifications |
Strip width(mm) |
Strip thickness(mm) |
|---|
|
5mm and below |
±0.1 |
±0.0026 |
|
5~15mm |
±0.1 |
±0.002 |
|
15~25mm |
±0.1 |
±0.002 |
|
25mm~60mm |
±0.1 |
±0.002 |
