Amorphous Core

AMORPHOUS CORES

• Description
• Tabel
• Graphs
• Images

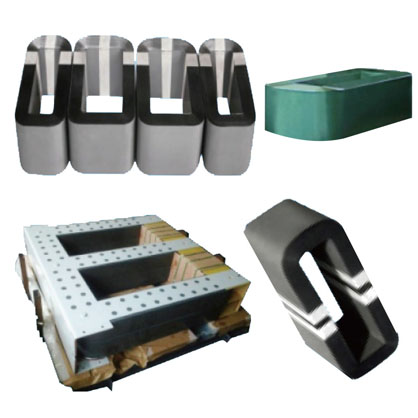

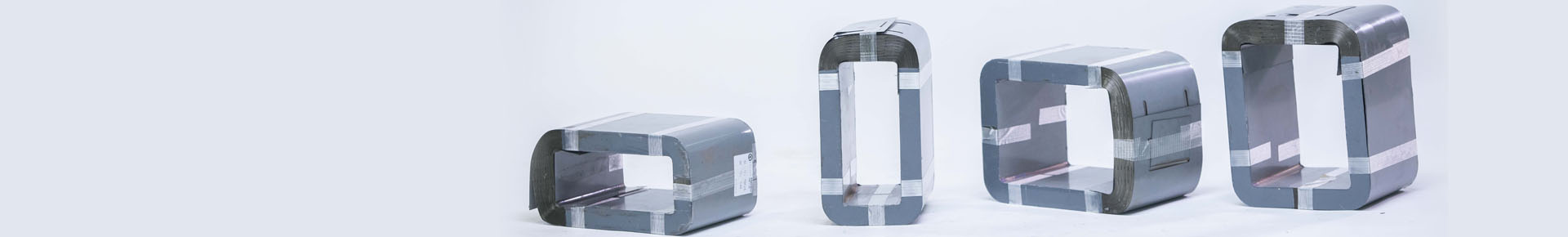

• Amorphous Alloy Iron Cores

  Classification of Amorphous Cores/Lamination

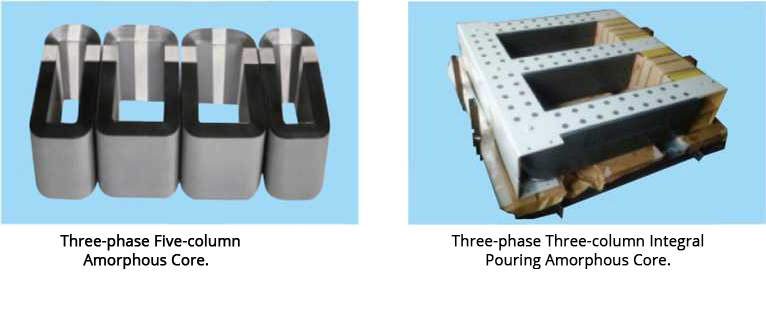

  • Three-phase oil-immersed amorphous alloy distribution transformer core
  • Single-phase oil-immersed amorphous alloy distribution transformer core.
  • Three-phase dry type amorphous distribution transformer core.



  Product Characteristic

  • Small lightweight transformer to reduce direct material cost
  • The equipment is simple and fast, and the production capacity is greatly improved.
  • Low noise effect
  • Compared with the silicon steel sheet transformer of the same capacity voltage grade, the no-load loss is reduced by 70%, and the no-load current is reduced by about 75%. The energy-saving effect is obvious.

• Performance index	Iron-based amorphous alloy(Guoneng)	Other domestic manufacturers
  saturation flux density(T)	1.6	1.59
  Coercive force(A/ m)	≤3.8	≤4
  Maximun permeability(|j)	>20*104	>20*104
  Iron loss 50Hz 1.35T(W/kg)	<0.14	<0.16
  Exciting power 50Hz 1,35T(VA/ kg)	<0.16	<0.18
  Lamination factor	≥0.88	≥0.86
  Magnetostrictive coefficient	27x10-6	27x10-6
  Resistivity(pQcm)	114	130
  Density(g/ cm3)	7.25	7.18
  Crystallization temperature(°C)	478	550
  Curie temperature(°C)	394	415
  Strength of extension(MPa)	1500-2000	1500-2000
  Vickers hardness(HV)	900	900
  Thickness(pm)	< 30(Our strip basically about 24 m)	<30

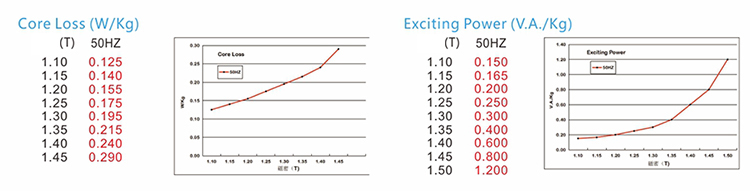

• Curve graph for iron cores (142/170)

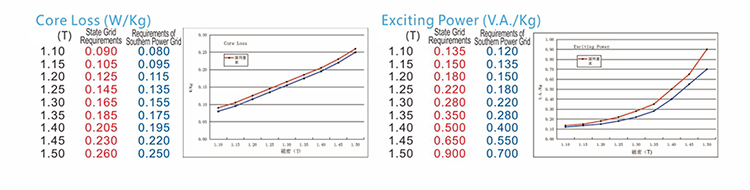

  Curve graph for dry type cores (170mm/142mm)



•
