Comparision Between Amorphous transformer and Silicon Steel transformer

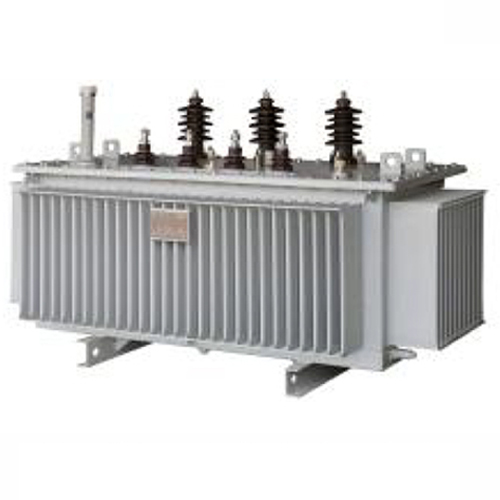

Amorphous transformer Sbh-400(15)

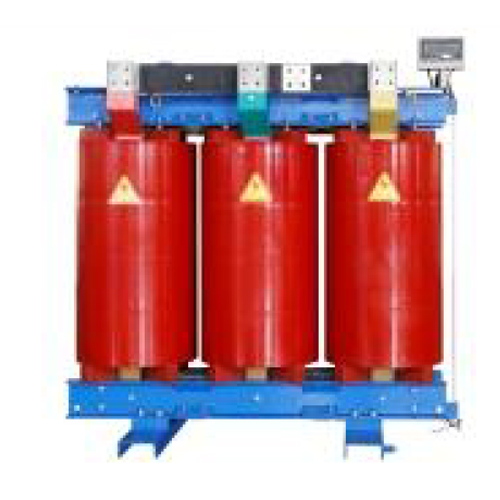

Dry Type Transformescb11-500

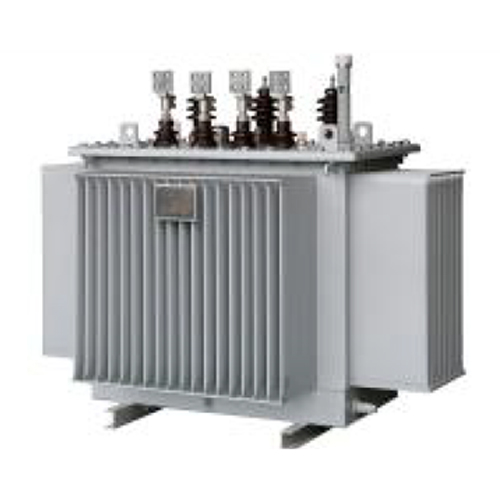

Oil-immesed Transformer S11-m-500(2)
COMPARISON OF PROPERTIES BETWEEN AMORPHOUS AND CRGO STEEL
| Performance index | Guoneng iron-based Amorphous Alloy | Cold Rolled Silicon Steel Sheet |
|---|---|---|
|
saturation Magnetic Inductance(T) |
1.61 |
2.03 |
|
Coercive force(A/ m) |
<3.8 |
<30 |
|
Maximun permeability |
>20*104 |
>4*104 |
|
Iron loss 50Hz 1.35T(W/kg) |
<0.14 |
1.2 |
|
Exciting power 50Hz 1,35T(VA/ kg) |
<0.16 |
<0.83 |
|
Lamination coefficient |
>0.88 |
0.96 |
|
Magnetostrictive coefficient |
27x10-6 |
--- |
|
CmResistivity(µΩ) |
114 |
o.45 |
|
Density(g/ cm3) |
7.25 |
7.65 |
|
Crystallization temperature(°C) |
478 |
--- |
|
Curie temperature(°C) |
394 |
746 |
|
Tensile Strength(MPa) |
1500~2000 |
343 |
|
Vickers hardness(HV) |
980 |
181 |
|
Thickness(µm) |
24-26 |
300 |
-
ADVANTAGES OF AMORPHOUS ( WHY AMORPHOUS )
- Small lightweight transformer to reduce direct material cost
- The equipment is simple and fast, and the production capacity is greatly improved.Low noise effect
- Low noise effect
- Compared with the silicon steel sheet transformer of the same capacity voltage grade, the no-load loss is reduced by 70% and the no-load current is reduced by about 75%. The energy saving effect is obvious.
