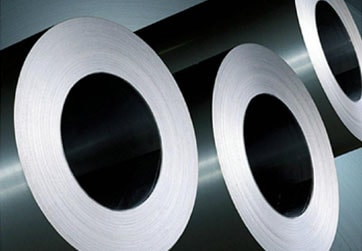

  Electrical steel made without special processing to control orientation, Non-Oriented Steel, usually has a silicon level of 2 and 3.5% and has smaller magnetic properties in all directions I.E., it is isotropic. Colled-Rolled Non-Grain-Oriented Steel is often abbreviated to CRNGO. Cold rolled Non-Oriented Electrical Steel (Non-Oriented Electrical Steel) the term oriented, when used in conjunction with electrical steel, refers to a crystal structure having magnetic properties that are materially better in a given direction.

  Difference between CRGO and CRNGO - CRGO needs precise alignment due to its anisotropy (The properties that are different along different directions are anistropic properties) but CRNGO can respond to flux changes in all directions (I.E., its properties are isotropic)

• Performance index	Iron-based amorphous alloy(Guoneng)	Other domestic manufacturers
  saturation flux density(T)	1.6	1.59
  Coercive force(A/ m)	≤3.8	≤4
  Maximun permeability(|j)	>20*104	>20*104
  Iron loss 50Hz 1.35T(W/kg)	<0.14	<0.16
  Exciting power 50Hz 1,35T(VA/ kg)	<0.16	<0.18
  Lamination factor	≥0.88	≥0.86
  Magnetostrictive coefficient	27x10-6	27x10-6
  Resistivity(pQcm)	114	130
  Density(g/ cm3)	7.25	7.18
  Crystallization temperature(°C)	478	550
  Curie temperature(°C)	394	415
  Strength of extension(MPa)	1500-2000	1500-2000
  Vickers hardness(HV)	900	900
  Thickness(pm)	< 30(Our strip basically about 24 m)	<30

• Curve graph for iron cores (142/170)




  Curve graph for dry type cores (170mm/142mm)



•
